Brass sheet and plate- JIANGSU HUA STEEL GROUP CO., LTD

Brass sheet and plate

Thickness:0.8-100mm
Spec：600*1500M/1M*2M
Temper: M,Y2,Y
Processing Mode: Laser machine,CNC computer gong,engraving machine,milling machine (support retail cutting)

We can provide full range of copper brass products, Pls feel free to let me know if you have any copper sheets plates products soon

WhatsApp: 8615365266939 Email: zyta@huaxinmetal.com

GET QUOTE EMAIL ME

Product description

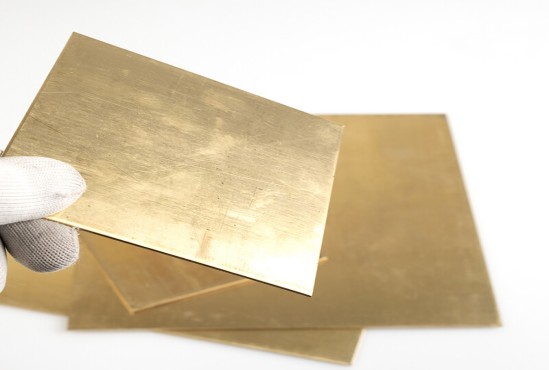

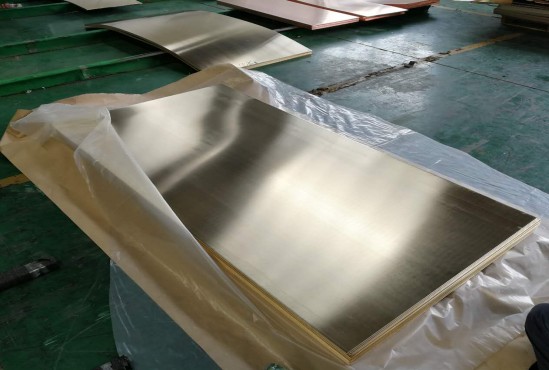

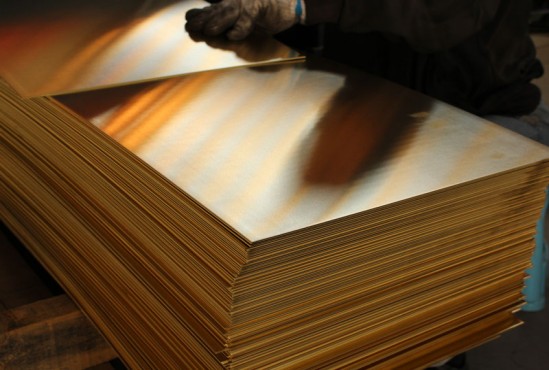

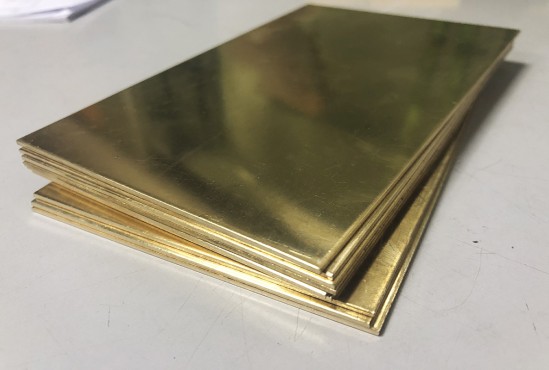

Brass plate

Brass plate is a widely used lead brass, has good mechanical properties, and cutting performance is good, can withstand hot and cold pressure processing, used in cutting and stamping processing of various structural parts, such as gaskets, bushings and so on. Tin brass plate has high corrosion resistance, good mechanical properties, good pressure processing in cold and hot state, can be used for corrosion resistant parts on ships and steam, oil and other medium contact parts and conduit.

Usage for common brass plate

Grade	Main Feature	Usage
C28000/C27400	It has high mechanical strength, good thermoplasticity, good cutting performance, easy to dezinc and stress cracking in some cases	All kinds of structural parts, sugar heat exchanger tube, pin, wire clamping plate, gasket, etc
C26800	It has sufficient machine strength and technical performance, and has a beautiful golden gloss	All kinds of hardware products, lamps, pipe fittings, zippers, plaques, nails, springs, settling filters and so on
C26000	With good plasticity and high strength, good cutting ability, easy to weld, corrosion resistance, easy to form	All kinds of cold and deep drawing parts, radiator enclosures, bellows, doors, lamps, etc
C26000	It has good plasticity and high strength, easy to weld, good corrosion resistance, and is very sensitive to stress corrosion cracking in ammonia atmosphere	Shell casings, car water tank, hardware products, sanitary pipe fittings, etc
C24000	It has good mechanical properties, good processing performance in hot and cold state, and high corrosion resistance in the atmosphere and fresh water	Label, relief, battery cap, musical instrument, flexible hose, pump pipe, etc
C23000	Has sufficient mechanical strength and corrosion resistance, easy to form	Architectural decoration, badge, bellows, serpentine pipe, water pipe, flexible hose, cooling equipment parts, etc
C22000	It has good mechanical properties and pressure machining properties, good corrosion resistance, and can be plated and coated with enamel	Decorations, MEDALS, Marine components, nails, wave guides, water tank belts, battery caps, channel pipes, etc
C21000	It has good cold and hot processing performance, easy welding, good surface engineering characteristics, no corrosion in the atmosphere and fresh water, no stress corrosion fracture tendency, has a solemn bronze color	Currency, souvenirs, badges, fuse caps, detonators, enamel bottom tires, waveguides, heat dispersing tubes, conductive devices, etc

Chemical Composition

Grade	Cu	Fe	Pb	Ni	Zn	Sum of impurities
C28000	57.0-60.0	0.3	0.5	0.5	remains	1
C27400	60.5-63.5	0.15	0.08	0.5	remains	0.5
C26800	63.5-68.0	0.1	0.03	0.5	remains	0.3
C26000	67.0-70.0	0.1	0.03	0.5	remains	0.3
C26000	68.5-71.5	0.1	0.03	0.5	remains	0.3
C24000	79.0-81.0	0.1	0.03	0.5	remains	0.3
C23000	84.0-86.0	0.1	0.03	0.5	remains	0.3
C22000	88.0-91.0	0.1	0.03	0.5	remains	0.2
C21000	95.0-97.0	0.1	0.03	0.5	remains	0.2

Physical Property of Brass Plate Sheets

Grade	Melt temperature/℃		boiling point /℃	density /kg·（kg·mˉ3）	specific heat capacity/J·（kg·℃）ˉ1	coefficient of linear expansion	thermal conductivity /W·（m·K）ˉ1	conductivity /%IACS	conductivity/%IACS		Resistivity/μΩ·m
	liquidus temperature	solidus temperature							Solid	Liqiud
C28000	896	886		8400		21.0X10ˉ6	125.1				0.0025
C27400	906	899		8430		20.6X10ˉ6	116.7	27	0.071		0.0017
C26800	936	906		8470		20.1X10ˉ6	116.7	27	0.067
C26000	939	910		8500		20.0X10ˉ6	116.7	27	0.064		0.0015
C26000	951	916	around 1150	8530	0.09	19.9X10ˉ6	120.9	28	0.062	0.39	0.0015
C24000	1001.2	966	around 1240	8660	0.093	19.1X10ˉ6	141.7	32	0.054	0.33	0.0015
C23000	1026.3	991	around 1300	8750	0.095	18.7X10ˉ6	151.7	37	0.047	0.29	0.0016
C22000	1046.4	1026.3	around 1400	8800	0.095	18.4X10ˉ6	187.6	44	0.04	0.27	0.0018
C21000	1071.4	1056.4	around 1600	8850	0.093	18.0X10ˉ6	243.9	57	0.031	0.24	0.0027
