Alloy Inconel 625 sheets
- thickness:0.5mm-30mm as your request
- Material：Nickel 200/201 ,Alloy330, Monel 400, Monel 405, Monel k500,Inconel 600, 601,617,625,690,718, Incoloy 800, 800H, 825,825HT, Hastelloy C22,C276,Waspalloy,Invar 36,42,Kovar ,Alloy A286
- Processing Mode: Laser machine,CNC computer gong,engraving machine,milling machine (support retail cutting)
We can provide full range of nickel alloy sheets plates products, Pls feel free to let me know if you have any alloy bar products soon
Product description
Nickel Alloy625
Alloy 625 is an austenitic nickel-chromium-molybdenum-niobium alloy possessing a rare combination of outstanding corrosion resistance coupled with high strength from cryogenic temperatures to 1800°F (982°C).
The strength of Alloy 625 is derived from the solid-solution hardening of the nickel-chromium matrix by the presence of molybdenum and niobium. Therefore, precipitation-hardening treatments are not required.
The chemical composition of Alloy 625 is also responsible for its outstanding corrosion resistance in a variety of severe operating environments along with resistance to oxidation and carburization in high temperature service. The alloy is resistant to pitting, crevice corrosion, impingement corrosion, intergranular attack and is almost immune to chloride stress corrosion cracking.
Alloy 625 can be easily welded and processed by standard shop fabrication practices.
Details of Nickel alloy sheets
|
Material
|
Monel/Inconel/Hastelloy/Duplex Steel/PH Steel/Nickel Alloy
|
|
Shape
|
Round,Forging,Ring,Coil,Flange,Disc,Foil,Spherical,Ribbon,Square,Bar,Pipe,Sheet
|
|
Grade
|
Duplex: 2205(UNS S31803/S32205),2507(UNS S32750),UNS S32760(Zeron 100),2304,904L
|
|
Others: 253Ma,254SMo,654SMo,F50(UNS S32100)F60,F61,F65,1J22,N4,N6 etc
|
|
|
Alloy : Alloy 20/28/31;
|
|
|
Hastelloy: Hastelloy B/ -2/B-3/C22/C-4/S/ C276/C-2000/G-35/G-30/X/N/g;
|
|
|
Hastelloy B / UNS N10001,Hastelloy B-2 / UNS N10665 /
DIN W. Nr. 2.4617,Hastelloy C,Hastelloy C-4 / UNS N06455 / DIN W. Nr. 2.4610,Hastelloy C-22 / UNS N06022 / DIN W. Nr. 2.4602,Hastelloy C-276 / UNS N10276 / DIN W. Nr. 2.4819,Hastelloy X / UNS N06002 / DIN W. Nr. 2.4665 |
|
|
Haynes: Haynes 230/556/188;
|
|
|
Inconel Series:
|
|
|
Inconel 600/601/602CA/617/625/713/718/738/X-750,Carpenter 20;
|
|
|
Inconel 718 / UNS N07718 / DIN W. Nr. 2.4668,Inconel 601 / UNS N06601 / DIN W. Nr. 2.4851,
Inconel 625 / UNS N06625 / DIN W. Nr. 2.4856,Inconel 725 / UNS N07725,Inconel X-750 / UNS N07750 / DIN W. Nr. 2.4669,Inconel 600 / UNS N06600 / DIN W. Nr. 2.4816 |
|
|
Incoloy: Incoloy 800/800H/800HT/825/925/926;
|
|
|
GH: GH2132,GH3030,GH3039,GH3128,GH4180,GH3044
|
|
|
Monel: Monel 400/K500/R405
|
|
|
Nitronic: Nitronic 40/50/60;
|
|
|
Nimonic: Nimonic 75/80A/90/A263 ;
|
|
|
Specification
|
Wire: 0.01-10mm
Strip: 0.05*5.0-5.0*250mm Bar: φ4-50mm;Length 2000-5000mm Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm |
|
Product
Characteristics |
1.According to the preparation process can be divided into deformation superalloys,
casting superalloys and powder metallurgy superalloys. 2.According to the strengthening mode, there are solid solution strengthening type, precipitation strengthening type, oxide dispersion strengthening type and fiber strengthening type, etc.. |
|
Standard
|
GB,AISI,ASTM,DIN,EN,SUS,UNS etc
|
|
Inspection
|
ISO,SGS,BV and so on.
|
|
Application
|
High temperature components such as turbine blades, guide vanes, turbine disks, high pressure
compressor disks,machine manufacturing and combustion chambers used in the manufacture of aviation, naval and industrial gas turbines |

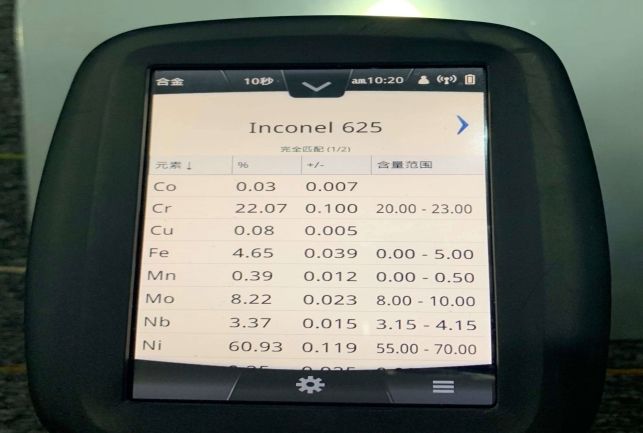

Chemical component
| Nickel | 58.0 min. | Silicon | 0.50 |
| Chromium | 20.0 min.-23.0 max. | Phosphorus | 0.015 |
| Molybdenum | 8.0 min.-10.0 max. | Sulfur | 0.015 |
| Iron | 5.0 | Aluminum | 0.40 |
| Niobium (plus Tantalum) | 3.15 min.-4.15 max. | Titanium | 0.40 |
| Carbon | 0.10 | Cobalt (if determined) | 1.0 |
| Manganese | 0.50 |
Pitting resistance equivalency numbers (PREN) for corrosion resistant alloys
| Alloy | Ni | Cr | Mo | W | Nb | N | PREN |
|---|---|---|---|---|---|---|---|
| 316 Stainless Steel | 12 | 17 | 2.2 | — | — | — | 20.4 |
| 317 Stainless Steel | 13 | 18 | 3.8 | — | — | — | 23.7 |
| Alloy 825 | 42 | 21.5 | 3 | — | — | — | 26.0 |
| Alloy 864 | 34 | 21 | 4.3 | — | — | — | 27.4 |
| Alloy G-3 | 44 | 22 | 7 | — | — | — | 32.5 |
| Alloy 625 | 62 | 22 | 9 | — | 3.5 | — | 40.8 |
| Alloy C-276 | 58 | 16 | 16 | 3.5 | — | — | 45.2 |
| Alloy 622 | 60 | 20.5 | 14 | 3.5 | — | — | 46.8 |
| SSC-6MO | 24 | 21 | 6.2 | — | — | 0.22 | 48.0 |
| Alloy 686 | 58 | 20.5 | 16.3 | 3.5 | — | — | 50.8 |
